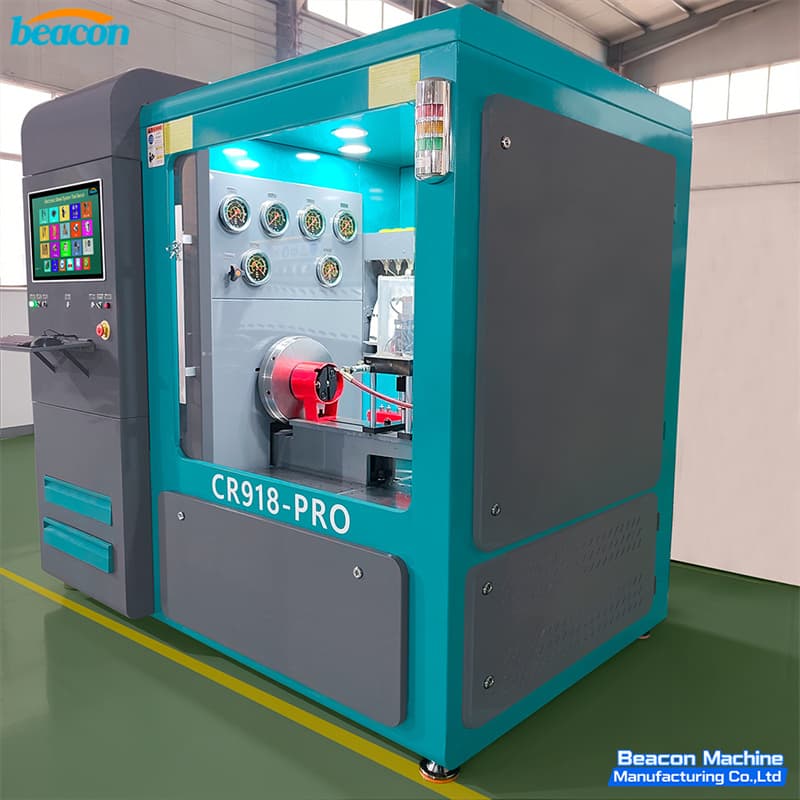

CR918-PRO Professional Multidimensional Diesel Test Rig | Diesel Injection Master Console

Product Description

Elevate your remanufacturing standards to the absolute peak with our professional multidimensional diesel fuel diagnostic console. The CR918-PRO series is meticulously crafted to be the definitive centerpiece of any elite automotive laboratory, handling diverse heavy-duty commercial demands with unprecedented stability.

Unlike standard calibration equipment, this flagship CR918-PRO multi-domain analytical rig integrates cutting-edge processing algorithms to evaluate both mechanical durability and electronic response simultaneously. Mechanics can now identify micro-fluctuations in flow rates instantly, eliminating diagnostic guesswork.

Secure your competitive edge in the diesel repair market. By adopting this high-precision omni-system pump tuning machine, your facility will seamlessly service an extensive spectrum of commercial engines, drastically lowering turnaround times and maximizing overall service profitability.


Scene picture

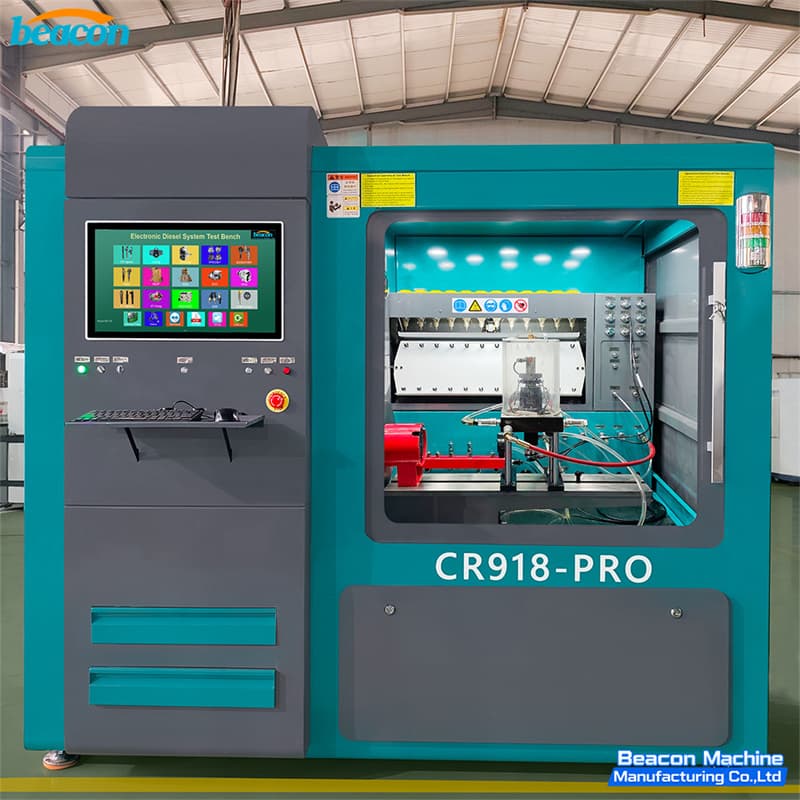

multifunction diesel test bench

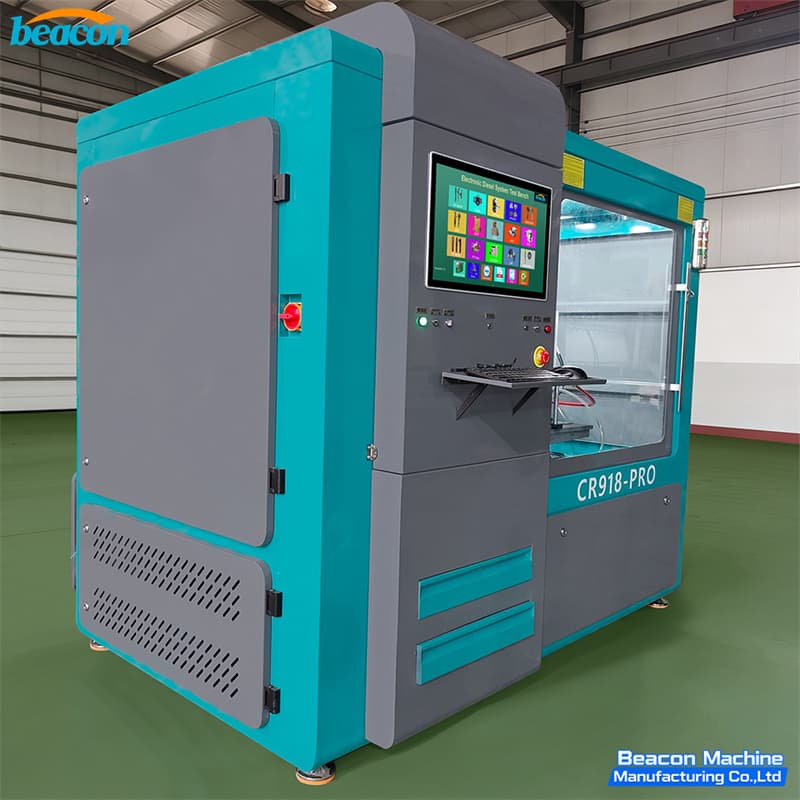

diesel injector and pump tester

common rail diesel diagnosis machine

Detailed picture

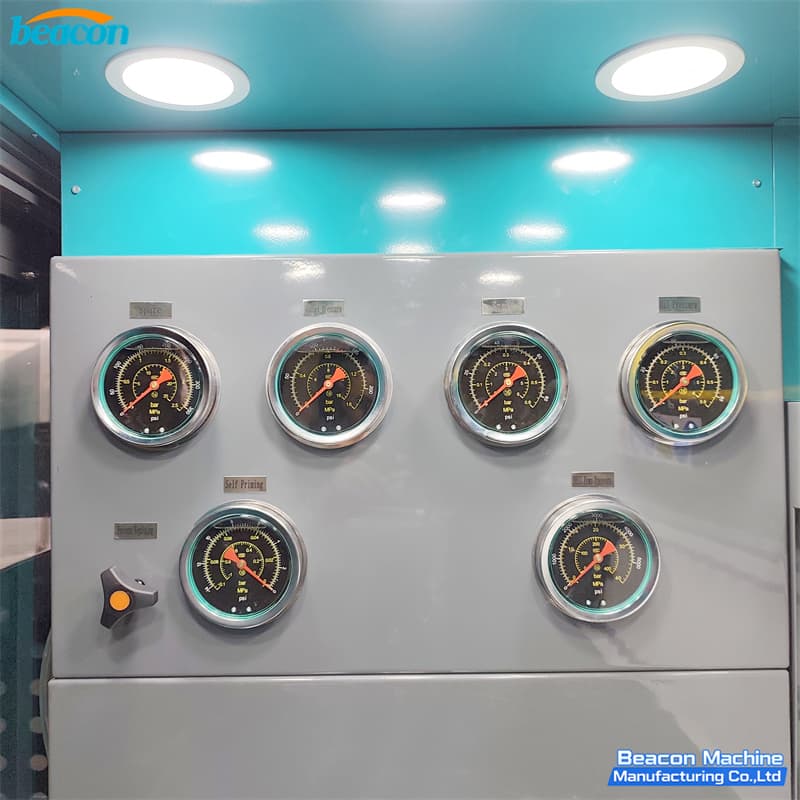

Pressure gauge

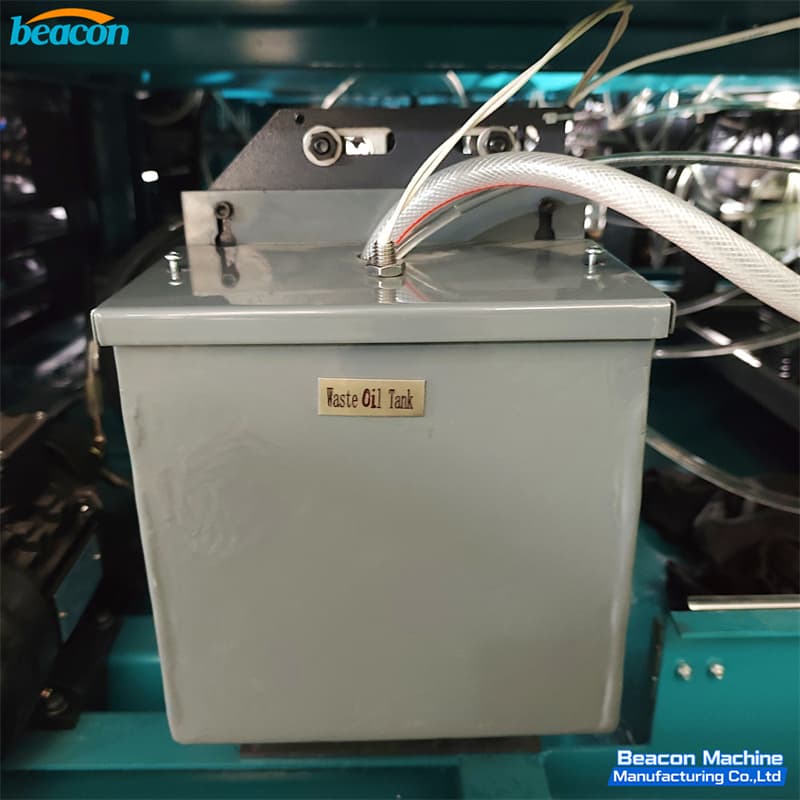

diesel fuel tank

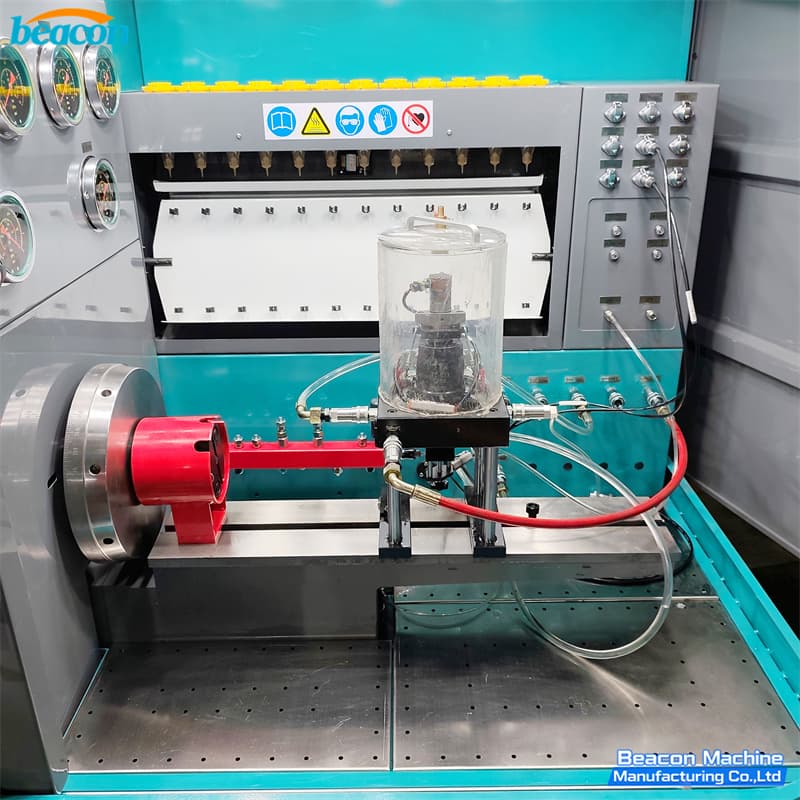

HEUI CAMBOX

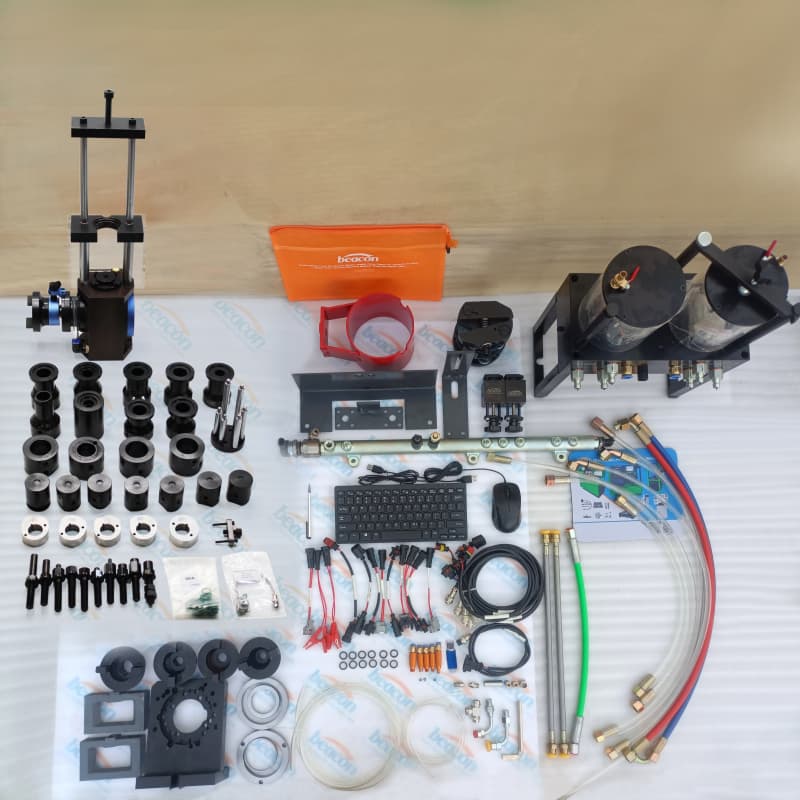

test bench part

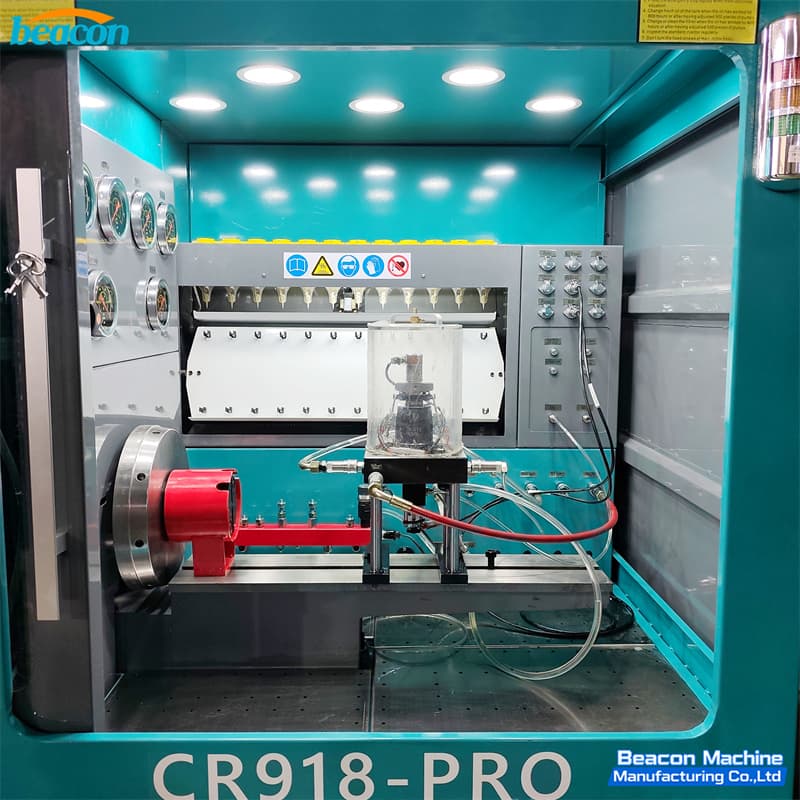

diesel fuel injection testing machine


parameter

ItemSpecification
Machine TypeMultifunction diesel test bench
Applicable ComponentsDiesel injectors/high-pressure pumps
Drive Motor Power15 kW
Power Supply380V / 50Hz (optional 220V)
Control SystemIndustrial PC + touch screen
Pressure Control Range0-2800 bar
Pump Speed Range0-4000 rpm
Injection Frequency0-120 Hz
Flow MeasurementElectronic flow measurement system
Test FunctionsInjection volume, backflow, leakage
Fuel MediumCalibration oil / diesel
Filtration Accuracy3 μm
Cooling MethodOil circulation cooling
Data StorageInternal database + USB export
Safety SystemEmergency stop & overpressure protection
Noise Level≤75 dB
Dimensions1600*1000*1900 mm
Net WeightApprox. 820 kg
